In modern industrial facilities across Gujarat—from automotive assembly lines in Halol and Savli GIDC to chemical bulk handling plants in Nandesari, Ankleshwar, and Dahej—conveyor systems serve as the mechanical backbone of continuous production.
At the heart of every efficient belt, roller, or slat conveyor is a compact, high-torque speed reducer. Among all gearbox types, the NMRV Worm Gearbox (aluminum or cast iron square body) has emerged as the industry standard for industrial conveyors due to its space-saving design, high transmission ratio in a single stage, and cost efficiency.
However, selecting the wrong gearbox frame size, ratio, or thermal factor can lead to overheating, oil seal failures, and unscheduled line downtime. In this comprehensive technical guide, Kinetix Systems—Vadodara's trusted supplier of power transmission and material handling solutions—breaks down the essential parameters for selecting the right NMRV worm gearbox for your conveyor systems.

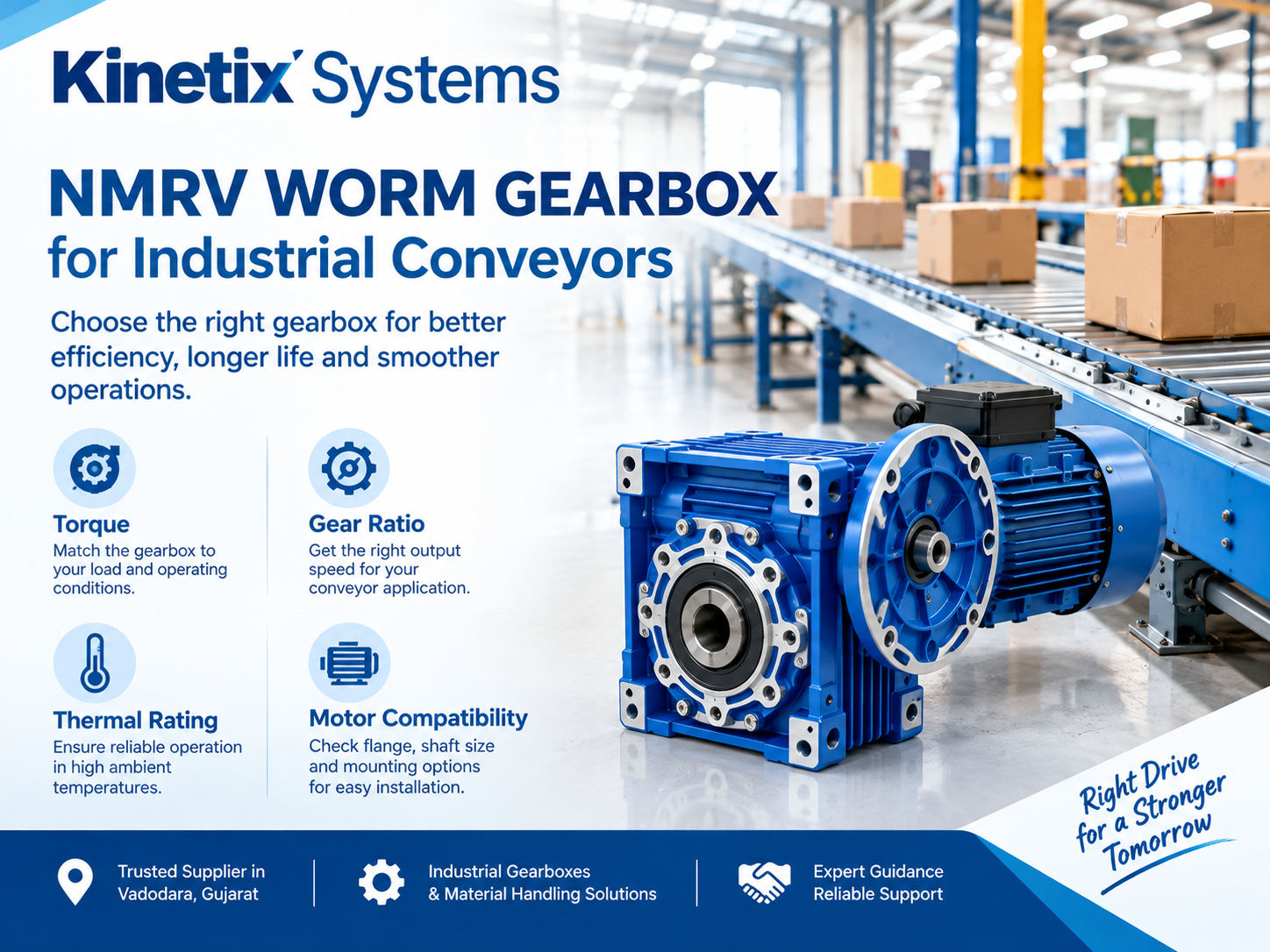

What is an NMRV Worm Gearbox?
An NMRV Worm Gearbox is a right-angle speed reducer consisting of a hardened steel worm screw (input) driving a bronze or alloy worm wheel (output) housed in a modular, cube-shaped enclosure.

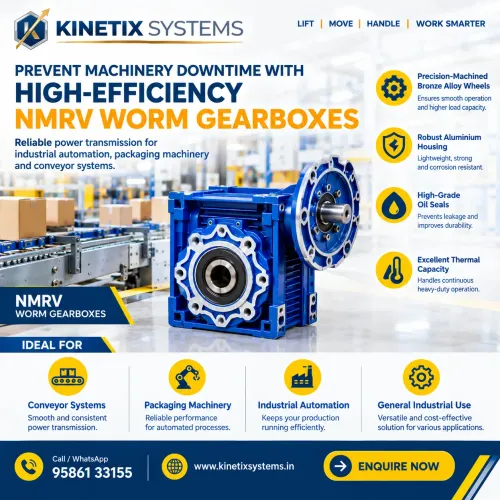

Key Design Advantages for Conveyors:
· Right-Angle Configuration: Mounts compactly alongside conveyor frames without projecting into factory walkways.
· Universal Mounting: Metric mounting holes on all sides allow vertical, horizontal, or shaft-mounted installations.
· Self-Locking Capability: At high gear ratios (typically 30:1 and above), worm gearboxes prevent reverse driving, acting as a passive safety brake on inclined conveyors.
· Low Noise and Smooth Operation: Continuous sliding tooth mesh minimizes vibration and operational noise on packaging lines.
4 Critical Selection Steps for Conveyor Applications
1. Determining Output Torque and Frame Size
Conveyors require high startup torque to overcome friction, load inertia, and incline gravity. Selecting an NMRV gearbox based solely on input motor horsepower (HP) often leads to undersized units.
Formula to Calculate Required Torque (M2): M2 = (9550 x P1 x Efficiency) / n2
(Where P1 = Motor Power in kW, n2 = Gearbox Output RPM, and Efficiency = Gearbox Mechanical Efficiency)
Frame Sizes Available at Kinetix Systems:
· Die-Cast Aluminum Housing (Lightweight and High Heat Dissipation): NMRV 025, NMRV 030, NMRV 040, NMRV 050, NMRV 063, NMRV 075, NMRV 090
· Cast Iron Housing (Heavy Industrial Duty): NMRV 110, NMRV 130, NMRV 150
Common Conveyor Speed Applications:
· Fast Transport Conveyors (20:1 to 30:1 Ratio): Output speed ~48 to 72 RPM; ideal for carton packaging, light staging, and airport luggage systems.
· Heavy Process Conveyors (40:1 to 60:1 Ratio): Output speed ~24 to 36 RPM; ideal for chemical bagging, assembly lines, and metal machining chip removal.
· Ultra-Slow Incline and Indexing (80:1 to 100:1 Ratio or PC Pre-stage): Output speed under 18 RPM; provides high hold-back torque for inclined belt conveyors.
3. Thermal Dissipation and Service Factors (fs)
Worm gear drives operate on sliding friction, which generates heat. In high ambient temperature zones like Vadodara, Bharuch, and Ahmedabad (where summer ambient temperatures exceed 40°C to 45°C), thermal rating calculations are critical:
Light Belt or Packaging Conveyors:
· Typical Motor Power: 0.25 HP to 0.5 HP
· Recommended NMRV Size: NMRV 030 / NMRV 040
· Ideal Gear Ratios: 10:1 to 30:1
· Preferred Mounting: Hollow Output Shaft
Medium Assembly Lines:
· Typical Motor Power: 1.0 HP to 2.0 HP
· Recommended NMRV Size: NMRV 050 / NMRV 063
· Ideal Gear Ratios: 20:1 to 50:1
· Preferred Mounting: Foot or Torque Arm
Heavy Bulk or Chemical Conveyors:
· Typical Motor Power: 3.0 HP to 5.0 HP
· Recommended NMRV Size: NMRV 075 / NMRV 090
· Ideal Gear Ratios: 30:1 to 60:1
· Preferred Mounting: Torque Arm Mounted
High Load Incline Drives:
· Typical Motor Power: 7.5 HP to 10.0 HP
· Recommended NMRV Size: NMRV 110 / NMRV 130
· Ideal Gear Ratios: 40:1 to 80:1
· Preferred Mounting: Solid Shaft / Output Flange
Upgrade Your Industrial Conveyors Today
Need expert technical assistance to size or replace an NMRV worm gearbox for your plant?
Contact Kinetix Systems
· Location: Vadodara, Gujarat, India
· Product Range: NMRV Worm Gearboxes, Helical Gear Motors, Hand Pallet Trucks, Stackers, Industrial Abrasives, and Material Handling Equipment.
· Get in Touch: Reach out to our Vadodara technical sales desk today for engineering assistance, product catalogs, and direct quotes.
