B2B Manufacturer & Supplier of NMRV Worm Gearboxes & Industrial Drives in Vadodara
Kinetix Systems, led by Founder Sumit Patel, is a premier supplier and mechanical power transmission partner based in Vadodara, Gujarat. We specialize in precision-engineered NMRV worm reduction gearboxes, speed reducers, electric motors, and mechanical drive solutions engineered for continuous industrial operations across conveyor lines, packaging machinery, chemical agitators, and material handling systems across Western India.
1. NMRV Worm Reduction Gearbox Product Portfolio

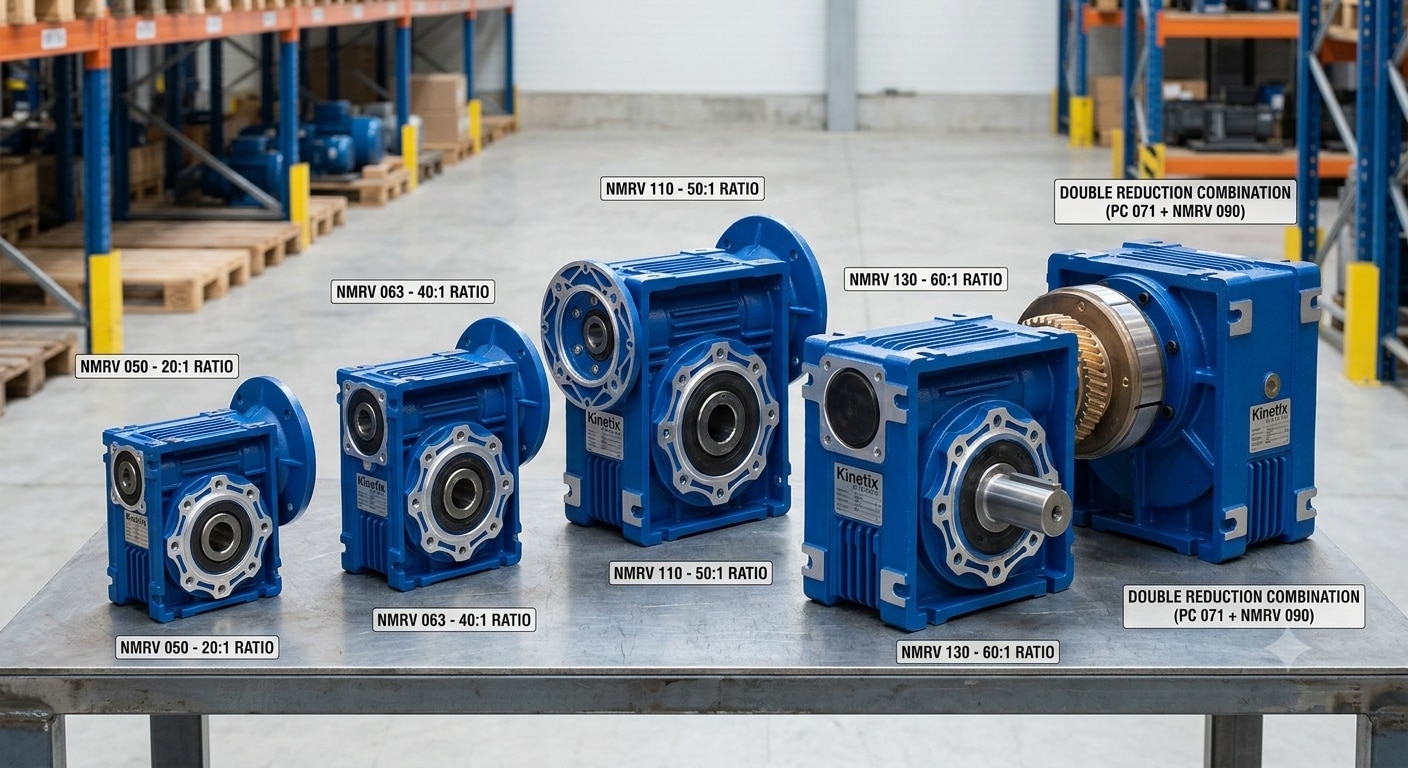

1. Standard NMRV Series Gearboxes (Sizes 025 to 150)
High-torque, compact speed reducers designed for versatile industrial power transmission and smooth, low-noise speed reduction.
- Available Sizes / Center Distances: NMRV 025, 030, 040, 050, 063, 075, 090, 110, 130, and 150 mm frame sizes.
- Reduction Ratios: Standard ratios ranging from 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 80:1, up to 100:1 in single stages.
- Housing Construction: Lightweight die-cast aluminium alloy housing for sizes 025–090 (providing excellent thermal dissipation); rugged cast iron housing (FC25) for heavy-duty sizes 110–150.
- Worm & Wheel Material: Case-hardened 20CrMo steel worm shaft with ground thread profile paired with premium synthetic bronze (CuSn12Ni2) worm wheel for superior wear resistance and extended operating life.
- Flange Mounting Options: Standard IEC motor input flanges (B5 and B14 frame setups) for direct coupling with 3-phase electric motors, torque arm setups, or solid/hollow output shaft configurations.
2. Double Reduction Combination Worm Gearboxes (PC / NMRV)
Engineered for specialized machinery requiring high output torque and extreme speed reduction ratios up to 5000:1.
- Pre-Stage Helical Modules (PC + NMRV): Combines a pre-stage helical gear unit with an NMRV worm gearbox for increased output torque capacity and higher energy efficiency.
- Double Worm Combinations (NMRV + NMRV): Paired dual worm gearboxes engineered for extremely low-RPM conveyor drives, industrial mixers, and automated process machinery.
3. Key Industrial Applications
- Conveyor Systems: Belt conveyors, roller tracks, bottle washing lines, and packaging automation.
- Chemical & Processing Equipment: Chemical agitators, pharmaceutical liquid mixers, food processing lines, and plastic extruders.
- Material Handling Equipment: Overhead cranes, electric hoists, winches, and automated storage racking systems.
Technical Specifications & Drive Matrix
| Gearbox Parameter | Technical Capability & Standard Range |
|---|---|
| Frame Sizes Offered | NMRV 025, 030, 040, 050, 063, 075, 090, 110, 130, 150 |
| Single Stage Ratio Range | 5:1 to 100:1 (Combination ratios up to 5000:1) |
| Input Motor Flanges | Standard IEC Flanges (B5 / B14) for 0.18 kW to 15 kW Motors |
| Housing Material | Aluminium Alloy (Sizes 025-090); High-Tensile Cast Iron (Sizes 110-150) |
| Lubrication Standard | Pre-filled Synthetic Oil (025-090); Mineral Oil (110-150) |
| Regional Supply Coverage | Vadodara (Makarpura, Savli, Halol, Nandesari), Ankleshwar, Dahej SEZ, Surat, & PAN-India |
Industrial Corridor Supply & Regional Delivery Hubs
Kinetix Systems holds ready stock in Vadodara to deliver rapid dispatch, complete technical datasheets, CAD dimensional drawings, and official GST invoicing across major manufacturing belts:
- Vadodara Industrial Corridor: GIDC Makarpura, Savli GIDC, Nandesari GIDC, Waghodia GIDC, Por-Ramangamdi, Halol, and Vadsar.
- Gujarat Engineering & Chemical Belts: Ahmedabad, Sanand, Bharuch, Ankleshwar GIDC, Dahej SEZ, Surat, and Vapi.
- PAN-India Procurement: Direct wholesale supply for OEMs, machinery builders, and plant maintenance departments.
Frequently Asked Questions (NMRV Worm Gearboxes)
Q1: What lubricant should be used in NMRV worm gearboxes?
Answer: Frame sizes NMRV 025 to 090 come factory pre-filled with high-grade synthetic lubricant (ISO VG 320) suitable for lifetime maintenance-free operation under normal ambient temperatures. Larger cast iron models (NMRV 110 to 150) require mineral oil (ISO VG 460) with routine oil level inspections based on operating duty cycles.
Q2: How do I select the right gear ratio and frame size for my application?
Answer: Gearbox selection depends on your electric motor RPM, target output RPM, required output torque (Nm), and daily duty cycle. Contact our technical engineering team in Vadodara with your motor horsepower and application details for precise sizing calculations.
Q3: Can NMRV gearboxes be mounted in any orientation?
Answer: Yes, NMRV worm gearboxes feature a universal cube housing design that allows flexible mounting in foot-mounted, flange-mounted, torque-arm mounted, or hollow-shaft configurations without performance compromise.
Q4: What is the efficiency rating of a single-stage NMRV worm gearbox?
Answer: Mechanical efficiency varies with reduction ratio and worm speed. Low-ratio units (5:1 to 15:1) achieve 80% to 92% efficiency, whereas higher ratio units (60:1 to 100:1) offer lower efficiency but provide self-locking capability to prevent reverse driving.
Q5: Does Kinetix Systems supply hollow output shafts, torque arms, and output flanges in Vadodara?
Answer: Yes, Kinetix Systems stocks complete original mounting accessories, including single/double solid output shafts, reaction torque arms, protective dust covers, and IEC motor adapter flanges for all NMRV sizes.
Q6: Can you provide urgent replacement units for broken gearboxes in Savli or Makarpura GIDC?
Answer: Yes, Kinetix Systems maintains complete ready inventory of standard NMRV sizes (030 to 110) in Vadodara to ensure same-day pickup or prompt dispatch for emergency breakdown replacements across local GIDC belts.
Contact Kinetix Systems for Gearbox Quotations & Sizing Support
Reach out to our power transmission technical team for dimensional datasheets, sizing guidance, or formal quotations:
- Office Address: Shop No 31, Samanvay Sparsh, Vadsar Road, Manjalpur, Vadodara, Gujarat - 390010
- Phone / Inquiries: 08048129050 | 9586133155
- Email: info@kinetixsystems.in
- Website: https://www.kinetixsystems.in
